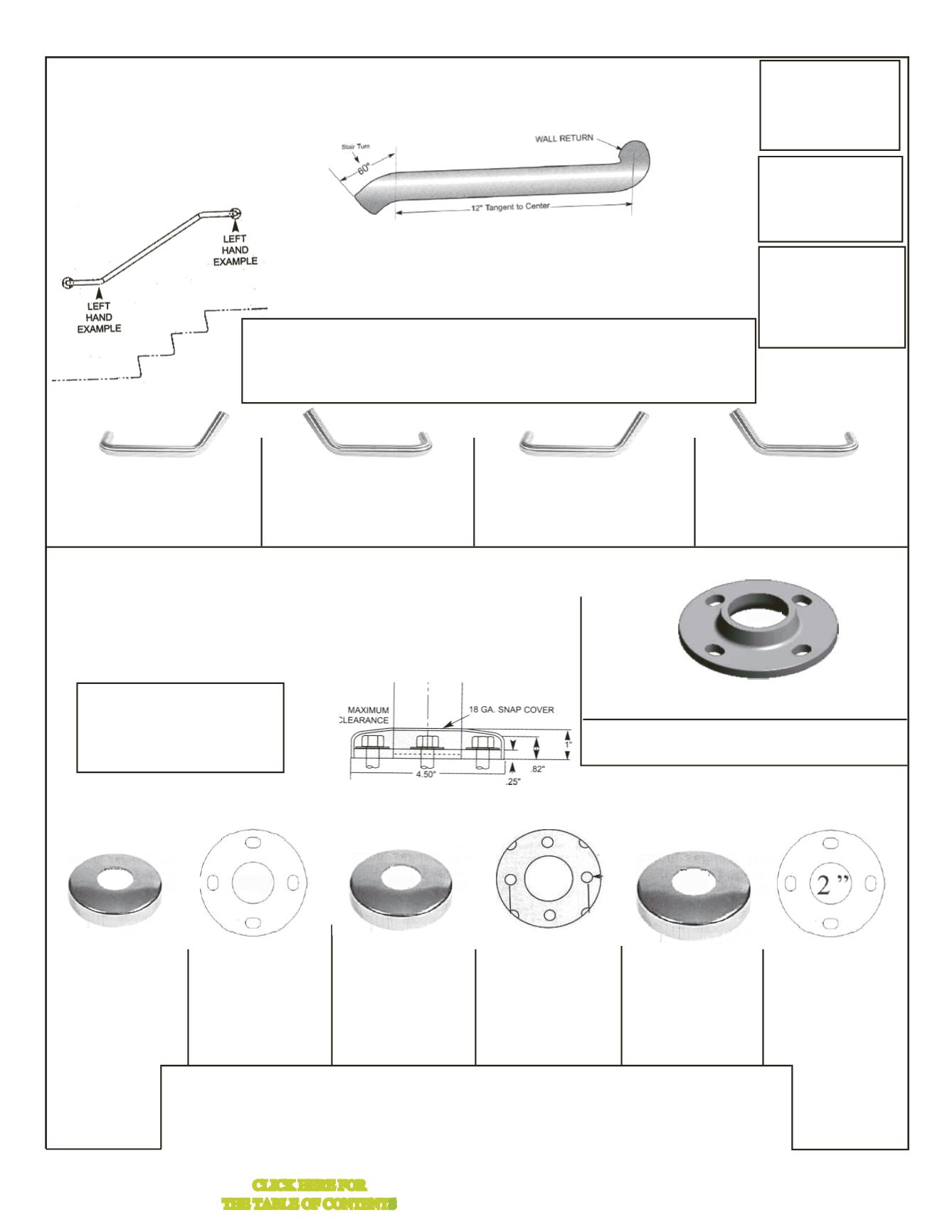

Catalog 23 - page 235

235
Orleans Ornamental Iron & Casting Dist.,Inc.
2860 Arts St., New Orleans, La. 70122
Tel: (504) 945-4466 Fax: (504) 947-4363 Toll: (800)824-3608
www.orleansornamental.com
CLICK HERE FOR
THE TABLE OF CONTENTS
FINISH YOUR RAILWITH ONE WELD
INSTEAD OF THREE
# W-REOIO-L
(LEFT HAND)
FITS 1 1/4” PIPE
# W-REOIO-R
(RIGHT HAND)
FITS 1 1/4” PIPE
# W-REO2O-L
(LEFT HAND)
FITS 1 1/2” PIPE
# W-REO2O-R
(RIGHT HAND)
FITS 1 1/2” PIPE
*STOCK PARTS ARE UNTRIMMED ON BOTH ENDS
*FABRICATOR TRIMS TO DESIRED DIMENSIONS
*WALL RETURN MAY BE TRIMMED TO NECESSARY CLEARENCE
*STAIR ANGLE END MUST BE TRIMMED AS REQUIRED FOR STAIR
SLOPE
# W-2065-C
(COVER)
FITS 1 1/4”
SCH.40 PIPE
# W-2065-B
(BASE)
FITS 1 1/4”
SCH.40 PIPE
# W-2075-C
(COVER)
FITS 1 1/2”
SCH.40 PIPE
# W-2075-B
(BASE)
FITS 1 1/2”
SCH.40 PIPE
# W-2085-C
(COVER)
FITS 2”
SCH.40 PIPE
# W-2085-B
(BASE)
FITS 2”
SCH.40PIPE
SNAP-ON COVER FLANGE WITH BASE & HEAVY DUTY FLANGE
*THIS IS A SYSTEM ENGINEERED FOR INSTALLATIONS WHICH REQUIRE SECURELY COVERED ANCHORAGE.IT
PROVIDES A UNIQUE LOCK DOWN SYSTEM FOR NON-STRUCTURAL COVERING ANCHOR BOLTS IN AVARIETY
OF MATERIALS
*THE SECURE CONNECTION OF COVER TO BASE IS PROVIDED BY FORMED TABS WITH A PRECISION TOLERANCE.
*THE COVER IS 18 GAUGE x 4.5” O.D.
*THE BASE IS 1/4” THICK
LEFT HAND IS PICTURED
TO ORDER THE CORRECT HAND
PICTURE STANDING AT THE BOTTOM LOOKING UP.THE SIDE YOU GRASP WITH THE
LEFT HAND IS LEFT.THE SIDE GRASPED WITH THE RIGHT HAND IS RIGHT
NOTE:ALLOW ENOUGH
STRAIGHT TANGENT ON
END OF BEND TO PERMIT
FLANGE TO SWING AND
SNAP INTO PLACE
SIZE OF SCHEDULE
40 PIPE
FOR 1 1/2”
I.D=1.610”
OD=1.900”
SIZE OF SCHEDULE
40 PIPE
FOR 2”
I.D=2.067”
OD=2.375”
SIZE OF SCHEDULE 40
PIPE
FOR 1 1/4”
I.D=1.380”
OD=1.66O”
NOTE:NOT AVAILABLE
TO FIT
2” PIPE
CONNECTORS,FLANGES,& BASES FOR 1 1/4”,1 1/2,2” SCH. 40 PIPE
MADE IN
U.S.A.
MADE IN
U.S.A.
# W-1613-HD (FITS 1 1/4”SCH 40 PIPE)
# W-1623-HD (FITS 1 1/2”SCH 40 PIPE)
SLOTTED
HOLES
.424X .612
SLOTTED
HOLES
.424X .612
SLOTTED
HOLES
.424X .612
SLOTTED
HOLES
.424X .612
SLOTTED
HOLES
.424X .612
1/4” THICK
4 3/8 O.D.
SLOTTED
HOLES
.424X .612
1/4” THICK
4 3/8 O.D.
