Orleans Ornamental Iron & Casting Dist.,Inc.
2860 Arts St., New Orleans, La. 70122
Tel: (504) 945-4466 Fax: (504) 947-4363 Toll: (800)824-3608

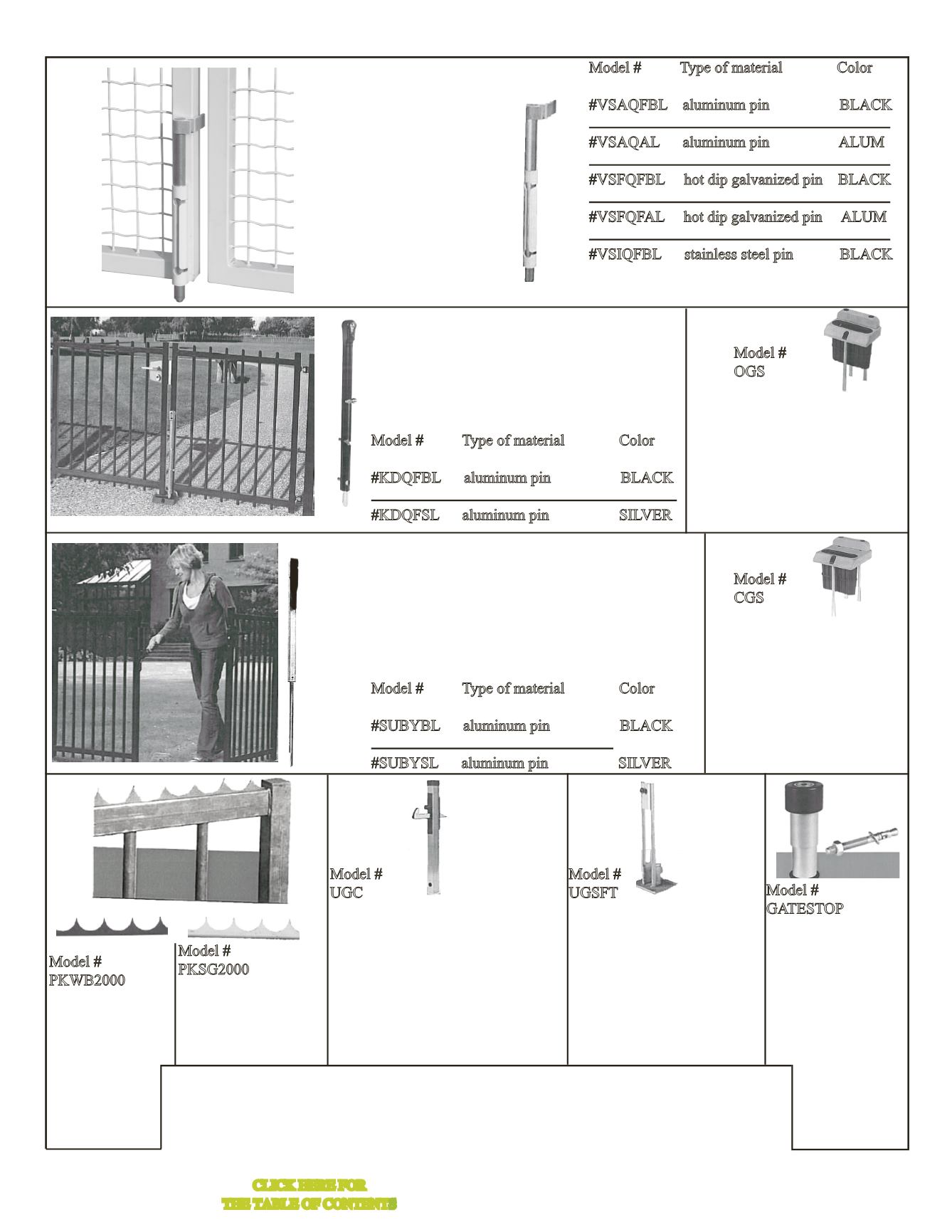

Surface Mounted Drop Bolt
*Height adjustable:3 15/16"
*Aluminium head block
*Throw:5 1/2"
*Locks between the leaves
*Fast & easy mounting:(quick-fix)
*Easy retrofitting
Model # Type of material Color
#VSAQFBL aluminum pin BLACK
#VSAQAL aluminum pin ALUM
#VSFQFBL hot dip galvanized pin BLACK
#VSFQFAL hot dip galvanized pin ALUM
#VSIQFBL stainless steel pin BLACK
Surface Mounted Keydrop Bolt
*Lockable dropbolt with cylinder
*Same drilling pattern as vsa,vsf,vsi
*Height adjustable in 3 postions:2"/position
*The gate can be closed in open or closed position
*For gate profiles 1 1/2"x1 1/2" or more
*Possibility to work with same key as gatelock
Model # Type of material Color
#KDQFBL aluminum pin BLACK
#KDQFSL aluminum pin SILVER
Internal drop Bolt
*Internal dropbolt in aluminum
*Fast & easy mounting:2 holes
*User-friendly manipulation of the drop bolt at keep height
*throw:4 3/4"
*Height adjustability of the drop bolt:3 15/16"
*Internal pressure spring avoids blocking of the drop bolt
(dirt in the ground)
*For gate profiles 1 1/2"x1 1/2",2"x 2",2 1/2"x2 1/2",2 3/8"x1 1/2"
Model # Type of material Color
#SUBYBL aluminum pin BLACK
#SUBYSL aluminum pin SILVER
Center Ground Stop
*Strong cast iron housing hot dip
galvanized
*Only suitable with internal drop
bolts (subybl,subysl,kdqfbl,kdqfsl)
*Adjustable stop plate for 1 1/2"
till 2 1/2" gate frames
*Steel concrete anchoring pins
*Removable polyamide cleaning
recipient
Model #
CGS
Off-Center Ground Stop
*Strong cast iron housing sherardised
*Only suitable for surface mounted
dropbolts (vsa,vsf,vsi)
*Adjustable stop plate for 1 1/2"
till 2 1/2" gate frames
*Steel concrete anchoring pins
*Removable polyamide cleaning recipient
Model #
OGS
Model #
PKWB2000
Security strip to weld on
*Black steel
*Mounting:welding
*profile:1 5/16" x 1/8"
*Length:78 3/4"
Model #
PKSG2000
Security strip to screw on
*L-profile hot dip galvanized
*Mounting:screw on
*Profile:1 7/16" x 1" x 1/8"
*Easy retrofitting
*Length:78 3/4"
Model #
GATESTOP
Gate stop with rubber
*Fast and easy mounting
*Height adjustable:
min. 2 3/8" to 5 1/2"
*Aluminium body with
rubber stop
*Includes anchor bolt
m12 for concrete
mounting
Model #
UGC
TYPE UNDER OR OVER GATE CATCHER
*Aluminium silver coated chassis
*Anchoring holes when put in concrete
*Height adjustability of the catch hook:1 1/2"
*Stop rubber and polyamide catch hook avoid
damaging the gate frame
*stop rubber adjustable for profiles:1 1/2" to
2 1/2" frames
*reversibility of the catch hook:pre-mounted
with hook up
*catches under or over gate
Model #
UGSFT
Ground feet for ugc gate catch
*Stainless steel feet for groundfixing
*Fixing with included mb anchor
bolts (2 pieces)
*Minimum required ground-gateframe
distance:3 15/16"(top bottom profile)
catch can
be flipped
over
ugc catch slips
over feet &
comes with two
bolts to be
mounted to
concrete
LOCINOX CANE BOLT,SECURITY STRIPS & ACCESSORIES FOR GATES
