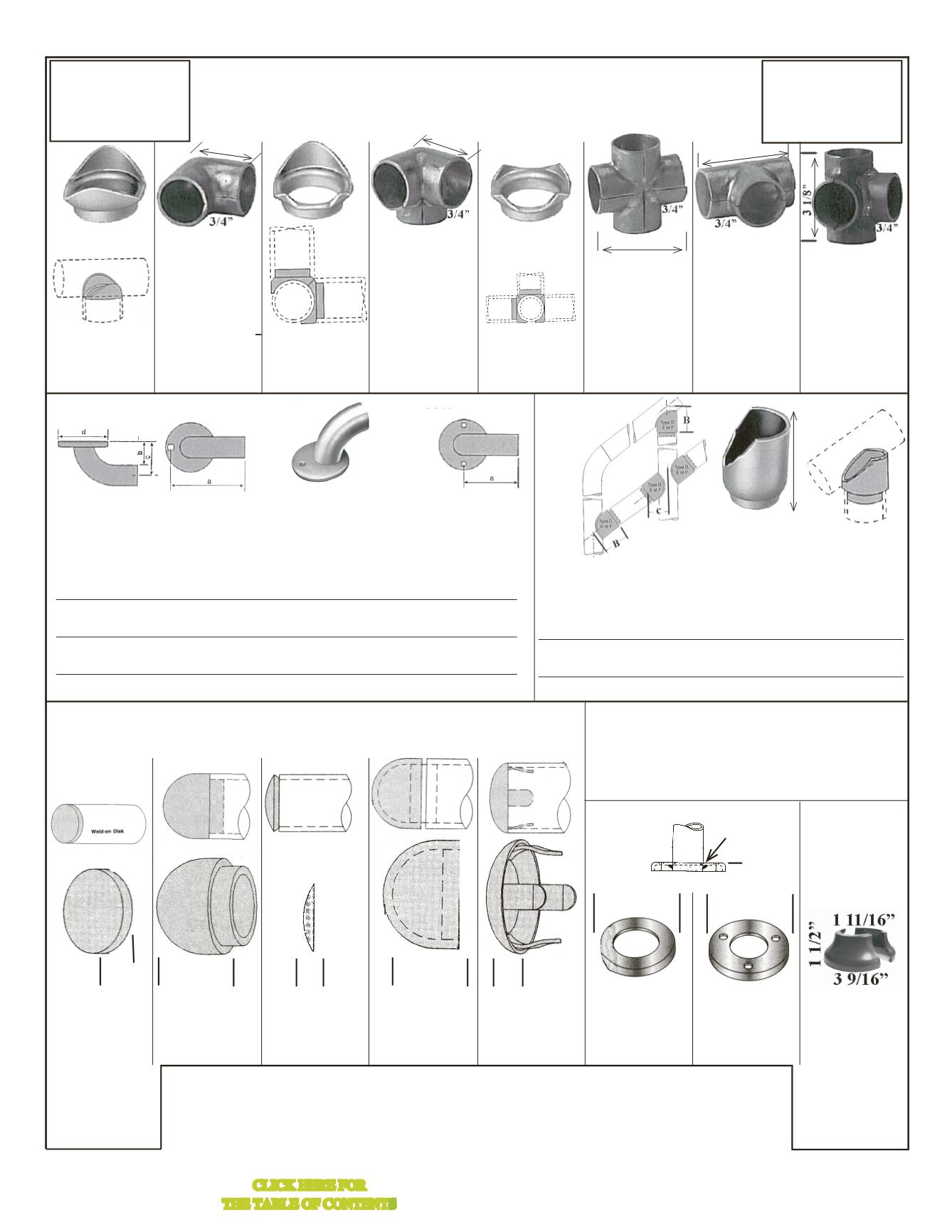

Catalog 23 - page 230

230
Orleans Ornamental Iron & Casting Dist.,Inc.
2860 Arts St., New Orleans, La. 70122
Tel: (504) 945-4466 Fax: (504) 947-4363 Toll: (800)824-3608
www.orleansornamental.com
CLICK HERE FOR
THE TABLE OF CONTENTS
COPED DRIVE ON WELDING CONNECTORS &
SOCKET WELD FITTING
(FOR 1 1/4” SCH.40 PIPE)
NO MORE PIPE COPING NECESSARY
# 1822-A
FITS 1 1/4”
SCH-40-PIPE
WELD & GRIND
CONNECTORS FOR 1 1/4” SCH. 40 PIPE
SIZE OF SCHEDULE 40
PIPE
FOR 1 1/4”
I.D=1.380”
OD=1.66O”
SIZE OF SCHEDULE 40
PIPE
FOR 1 1/4”
I.D=1.380”
OD=1.66O”
# 1826-B
FITS 1 1/4”
SCH-40-PIPE
# 1830-C
FITS 1 1/4”
SCH-40-PIPE
90° TEE CONNECTOR CORNER TEE
# 801-E
FITS 1 1/4”
SCH-40-PIPE
# 840-ES
FITS 1 1/4”
SCH-40-PIPE
# 857-C
FITS 1 1/4”
SCH-40-PIPE
# 848-T
FITS 1 1/4”
SCH-40-PIPE
# 853-SOT
FITS 1 1/4”
SCH-40-PIPE
WELD
&
GRIND WELD
&
GRIND
SIDE OUTLET TEE
FLUSH END CAPS,COVER CAPS, & FLANGES
(FOR 1 1/4” SCH 40 PIPE)
# 3228-D
(WELD & GRIND)
FITS 1 1/4”
SCH-40-PIPE
1 1/8”
3/16” 1/2” 1 1/8” 1/2”
# 3211-A
(DRIVE ON)
FITS 1 1/4”
SCH-40-PIPE
# 3228-F
(WELD & GRIND)
FITS 1 1/4”
SCH-40-PIPE
# 3219-C
(WELD & GRIND)
FITS 1 1/4”
SCH-40-PIPE
# 3211-H
(DRIVE ON)
FITS 1 1/4”
SCH-40-PIPE
3 7/8” 3 7/8”
# 2526
(PLAIN)
FITS 1 1/4”
SCH-40-PIPE
# 2527A
(3 HOLES 5/16")
FITS 1 1/4”
SCH-40-PIPE
SNAP TOGETHER
PLASTIC
BLACK SHOES
# PRD-114
(PLASTIC BLACK)
FITS 1 1/4”
SCH-40-PIPE
3/8”
THICKNESS
OF FLANGES
.134”
3/8" hole 5/16" holes
32°, 36° 45°
Beveled Connectors
90°
elbow
side
outlet
elbow
cross tee side
outlet
tee
Model NO. OF O.D. WALL A B C D
Number HOLES THICK.
1103-1.......one.......... 1.660"..... .140........... 4.44"...... 2.17"..... 3.00"...3.50"
1160-1.......one.......... 1.660"..... .140........... 4.44"...... 2.42"..... 3.25"...3.50"
1103-2.......two.......... 1.660"..... .140........... 2.88"...... 2.17"..... 3.00"...3.88"
1160-2.......two.......... 1.660"..... .140........... 2.88"...... 2.42"..... 3.24"...3.88"
Model O.D. BEVEL DIM.TO DIM.TO
Number CENTER CENTER
B C
1873-32....... 1.660"......... 32°............ 2.31"......... 1.96"
1870-36....... 1.660"......... 36°............ 2.56"......... 2.07"
1872-45....... 1.660"......... 45°............ 2.31"......... 1.63"
2 3/8" 2 1/2"
3 1/4"
3 1/4"
2 1/4"
MADE IN
U.S.A.
MADE IN
U.S.A.
MADE IN
U.S.A.
MADE IN
U.S.A.
MADE IN
U.S.A.
REDERVED FOR NEW ITEMS
