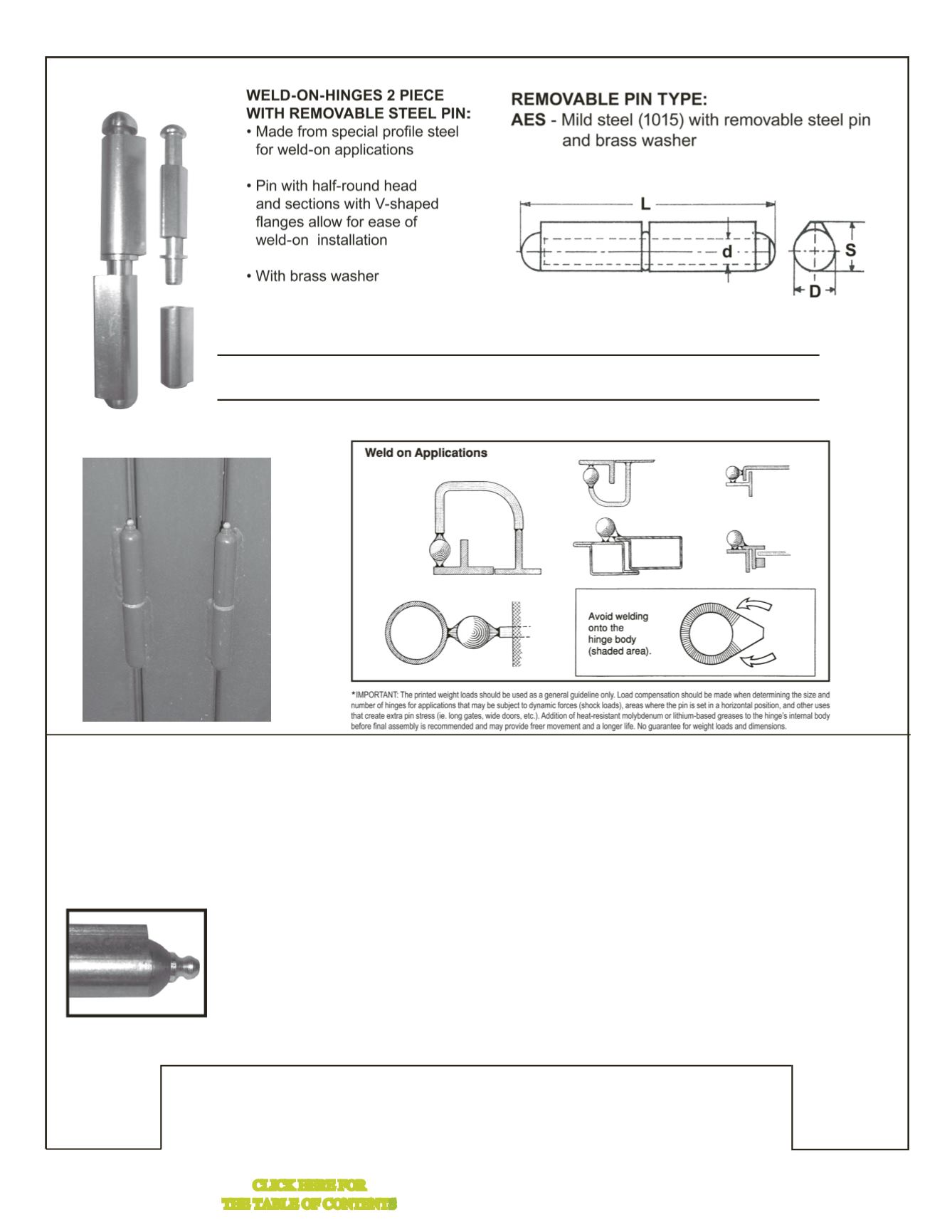

STEEL HINGE WITH REMOVABLE PIN
TYPE OF MODEL
L D WEIGHT D/S
MATERIAL NO.
LENGTH PIN DIA. LOAD PER CROSS SECTION
HINGE
STEEL REM-2
2” - - - -7/32” - - - 150 LBS - - - - 5/16”-13/32"
STEEL (1015) WITH REMOVABLE STEEL PIN & BRASS WASHER
STEEL REM-8
8” - - - -21/32” - - 660 LBS - - - - 29/32"- 1 5/32"
STEEL (1015) WITH REMOVABLE STEEL PIN & BRASS WASHER
STEEL HINGES FOR SWING GATES
(sold ea.)
TYPE OF MODEL L D WEGHT D/S
MATERIAL NO. LENGTH PIN DIA. LOAD PER CROSS SECTION
PAIR
ALUMINUM- -------
FIXGRALUM-4
- ------4”---------------- 13/32" - - - 500 LBS - - 5/8" - - -3/4"
ALUMINUM (6063) WITH STAINLESS STEEL FIX PIN & WASHER
STAINLESS----------
FIXGRSTAIN-4
--------4”---------------- 13/32" - - - 750 LB - - 5/8” - --3/4”
STAINLESS (304) WITH STAINLESS STEEL FIX PIN & STAINLESS WASHER
ALUMINUM- -------
FIXGRALUM-6
- ------6”---------------- 1/2” - - - - 650 LBS - - 3/4” - - 1”
ALUMINUM (6063) WITH STAINLESS STEEL FIX PIN & WASHER
STAINLESS----------
FIXGRSTAIN-6
--------6”---------------- 1/2” - - - - 900 LB - - 3/4” - -1”
STAINLESS (304) WITH STAINLESS STEEL FIX PIN & STAINLESS WASHER
STAINLESS----------
FIXGRSTAIN-8
--------6”---------------- 5/8” - - - - 1200 LB - - 29/32 - 1 1/8”
STAINLESS (304) WITH STAINLESS STEEL FIX PIN & STAINLESS WASHER
FIXED ALUMINUM & STAINLESS HINGES WITH GREASE FITTING
(sold ea.)
FIXED PIN TYPE
ALUMINUM(6063)WITH STAINLESS
STEEL PIN AND STAINLESS WASHER
STAINLESS STEEL (304)WITH STAINLESS
STEEL PIN AND STAINLESS WASHER
:MADE FROM SPECIAL PROFILE ALUMINUM FOR
WELD-ON APPLICATIONS
:ESTHETIC HALF-ROUND HEADS AND 360 DEGREE
ROTATION OF V-SHAPED FLANGES ALLOW FOR
EASE OF WELD-ON INSTALLATION
:WITH STAINLESS WASHER
